Introduction

Designed for the pharmaceutical industry, the testo 190-T4 CFR temperature data logger for sterilization and freeze-drying processes has two long, flexible probes which also enable you to measure in corners. It is particularly suitable for monitoring the temperature in autoclaves, containers, liquids or on surfaces, for example on plates in freeze-drying systems.

Description

“The qualification and validation of sterilization and freeze-drying processes is subject to high requirements and is a key element of quality assurance in the pharmaceutical industry.

Our reliable and robust CFR temperature data logger supports you in meeting these requirements efficiently.

This is what the 190-T4 CFR temperature data logger offers

High-precision: precise CFR data logger with two long, flexible probes (length 775 mm, Ø 1.5 mm), reading memory of 30,000 readings per channel
Two long, flexible probes: ideal for sterilization applications, measuring surface temperature in freeze-drying systems and determining the acclimatization time between core and outer temperatures. In combination with the freeze dryer probe holder (please order separately), the surface temperature of freeze-drying systems can be accurately measured
Slim design: with a diameter of 20 mm, the loggers are ideal for use in tight objects or cramped conditions
Robust and durable: high-quality materials and innovative construction make the CFR data logger particularly robust and durable. Thanks to hermetically sealed measuring technology in a separate stainless steel housing, the CFR data logger impresses due to its reliability and maximum robustness
Battery change in seconds: the practical thread enables the battery to be screwed onto the CFR data logger and changed intuitively and securely without using any tools
Reliably tight: the CFR data logger remains 100% tight even after the batteries are changed. The battery housing is coated in highly temperature-proof polyether ether ketone (PEEK)
Flexible height: the size of the CFR data logger can vary with two different types of battery. The small battery makes the logger’s dimensions particularly compact. The larger battery (included in the scope of delivery) is suitable for measurements at low temperatures, for example in freezer systems

Programming, readout and analysis of the data logger
Very practical to use: in addition to being used for storage, the multifunction case can also be used for parallel programming and readout of up to 8 data loggers simultaneously. This means you do not need any additional readout unit and you also save time.

With the specially developed 21 CFR Part 11-compliant testo 190 CFR software (please order separately) you can program and read out the data logger, as well as analyzing the measurement data, on the PC. The clear software structure guides you intuitively through the process step by step. During input, it provides help at critical points through warnings. The software thus enables even inexperienced users to carry out the measurement process easily.”

USPs

• Two long, flexible probes for precise temperature measurement in sterilization and freeze-drying applications and for determining the acclimatization time between core and outer temperature
• Durable, robust, reliably tight, even after changing the battery
• Two long, flexible probes for precise temperature measurement in sterilization and freeze-drying applications and for determining the acclimatization time between core and outer temperature
• Simultaneous configuration and readout of several CFR data loggers via the multifunction case

Delivery Scope

1 x testo 190-T4 CFR data logger, including battery large, distance adapter for testo 190 programming and readout unit, thread extension, calibration protocol and instruction manual.

Downloads

Download Datasheet Instruction manual

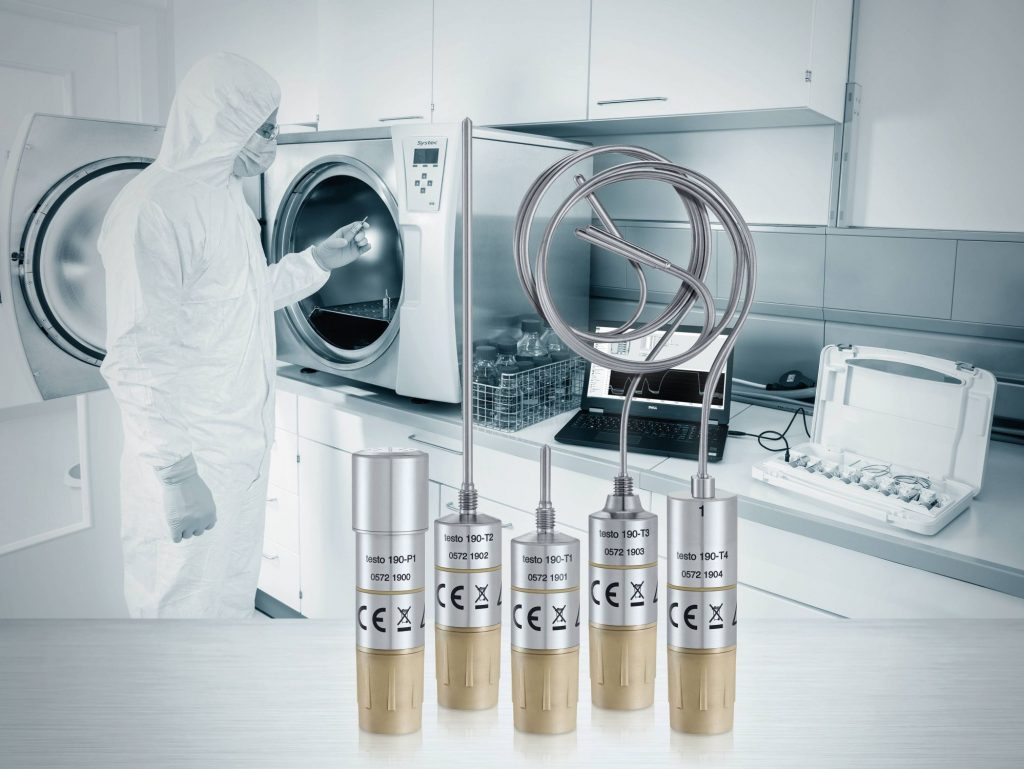

Application Image

Technical Details

Temperature – Pt1000
Measuring range -50 to +140 °C
Accuracy ±0.2 °C (-50 to -40 °C), ±0.1 °C (-40 to -140 °C)
Resolution 0.01 °C

General technical data
Dimensions 20 x 72 (ø x height)
Operating temperature -50 to +140 °C
Product-/housing material Stainless steel, PEEK plastic
Length probe shaft 775 mm
Length probe shaft tip 25 mm
Diameter probe shaft 1.5 mm
Diameter probe shaft tip 3 mm
Channels 2
Measuring rate 1 s to 24 h
Authorizations CE
Battery type 1/2 AA lithium
Battery life 2,500 operating hours (measuring cycle 10 sec at +121 °C)
Memory 30,000 measurement values / channel
Storage temperature -20 to +50 °C
