Current/Voltage Tester – testo 755-2

Description

With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity and measures flow of current along with current consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable.

Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V and enables rotating magnetic field measurement along with single pole voltage testing to determine quickly whether conductors are live

USPs
  • Simple, reliable operation with automatic selection of measurement parameters
  • DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
  • Single pole voltage testing to determine quickly whether conductors are live
  • Voltage range up to 1,000 V
Delivery Scope

testo 755-2 current/voltage tester, including batteries, measuring tips, measuring tip caps, calibration protocol and instruction manual.

Downloads

Download DataSheet Instruction Manual

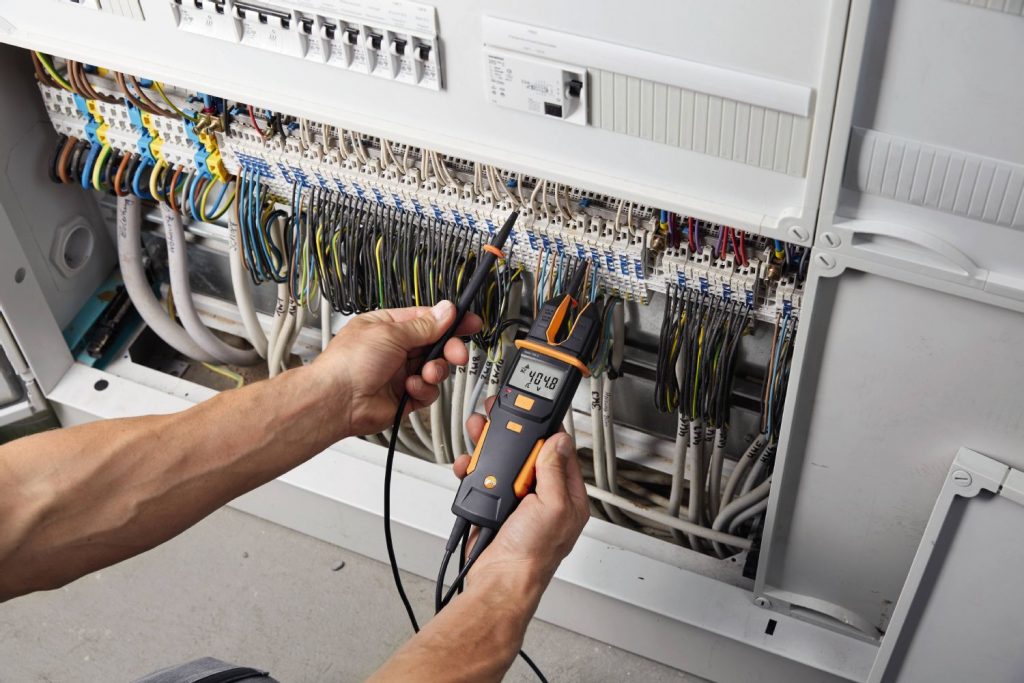

Application Image

Technical Details

DC voltage
Measuring range 6 to 600 V
Resolution max. 0.1 V
Accuracy ± (1.5 % of mv + 3 Digit)

AC voltage
Measuring range 6 to 600 V
Resolution max. 0.1 V
Accuracy ± (1.5 % of mv + 3 Digit)

AC current
Measuring range 0.1 to 200 A
Resolution max. 0.1 A
Accuracy ± (3 % of mv + 3 Digit)

Resistance
Resolution max. 1 Ohm
Measuring range 30 to 100 kOhm
Accuracy ± (1.0 % of mv + 5 Digit)

General technical data
Operating humidity 0 to 75 %RH
Weight 320 g
Dimensions 199 x 62 x 40 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61243-3; EN 61010-1
Battery type 2 AAA micro batteries
Display type LCD
Display size one-line
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE

Instrument Measurement Functions
Continuity testing yes
Display ligthing yes
Hold yes
Measuring point illumination yes
Display (counts) 4,000
Autom. measurement parameter detection yes
