Dewpoint Transmitter – testo 6743

Description

Air, compressed air and gases are used in all areas of industry. Humidity and moisture are generally undesirable because they can cause damage or impair the quality of the end product. The use of measuring and control technology is recommended in order to monitor humidity in the network and prevent damage.

Our testo 6743 dew point transmitter was designed specifically for measuring trace humidity in compressed air or dry air. It boasts a polymer humidity sensor which features a high degree of accuracy and long-term stability.
Technical advantages offered by the testo 6743 dew point transmitter
High accuracy: the testo 6743 dew point transmitter uses the Testo polymer sensor to measure humidity with a high degree of precision – up to ±1 K at 0 °Ctd (+32 °Ftd)
Scalable analog output: the dew point transmitter converts the measured values into a standardized electrical signal, whereby the analog output can be scaled as required (4 to 20 mA)
Alarm plug with 2 integrated switching outputs (optional): use the switching contact plug for MAX monitoring
Practical format: the testo 6743 dew point transmitter features a compact and user-friendly design. For example, the housing can be rotated by 350°, enabling optimum alignment of the display
Display with operating menu: convenient operation and on-site read-out of readings

Use the dew point transmitter to prevent damage (e.g. in refrigeration dryers or membrane dryers). This can save you a considerable amount of money, because if the quality of the end product is impaired in any way, it can prove costly. The cost of running adsorption dryers can also be reduced: accurate humidity-controlled chamber activation precisely adjusts the use of regenerated air to meet requirements – not at a preset time increment, which often creates unnecessary, excess consumption of regenerated air.

USPs

• Dew point transmitter with a measuring range of -45 °Ctd to + 30 °Ctd, G½ thread and display
• Testo polymer humidity sensor with a high degree of accuracy and long-term stability
• Freely scalable analog output (4 to 20 mA) and optional alarm plug with 2 integrated switching outputs

Delivery Scope

testo 6743 dew point transmitter to -45 °Ctd with polymer humidity sensor, display, process connection G½ thread, analog output 4 to 20 mA and optional alarm plug with 2 switching outputs.

Downloads

Download Datasheet Instruction manual

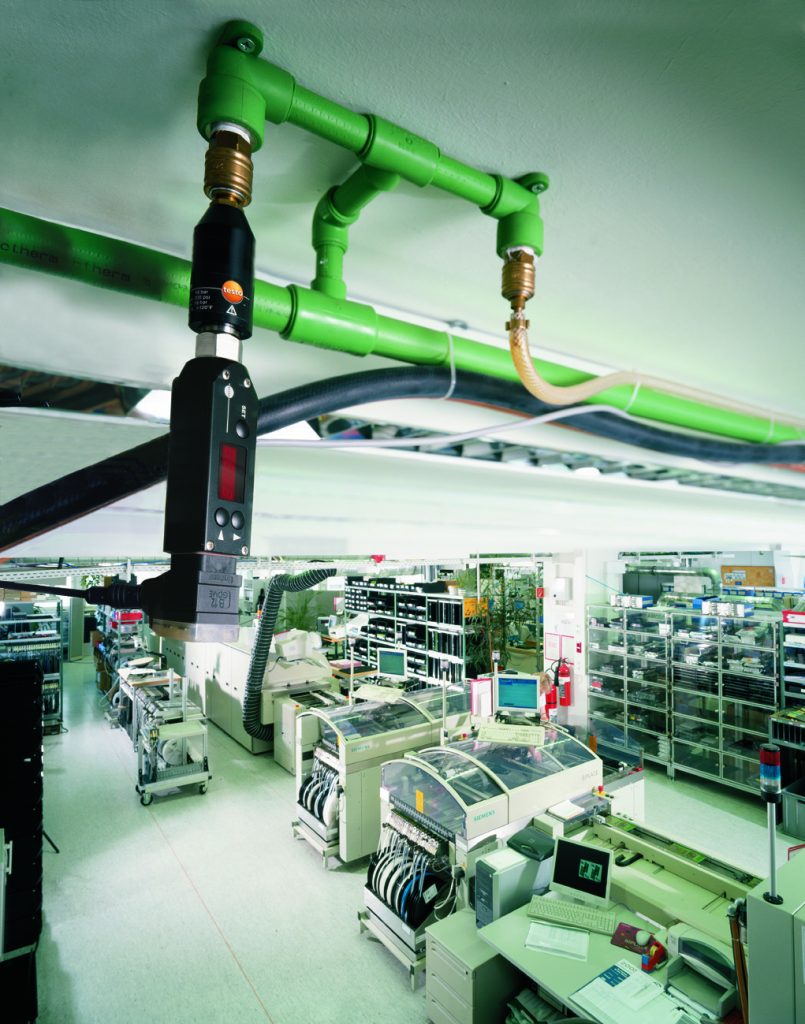

Application Image
