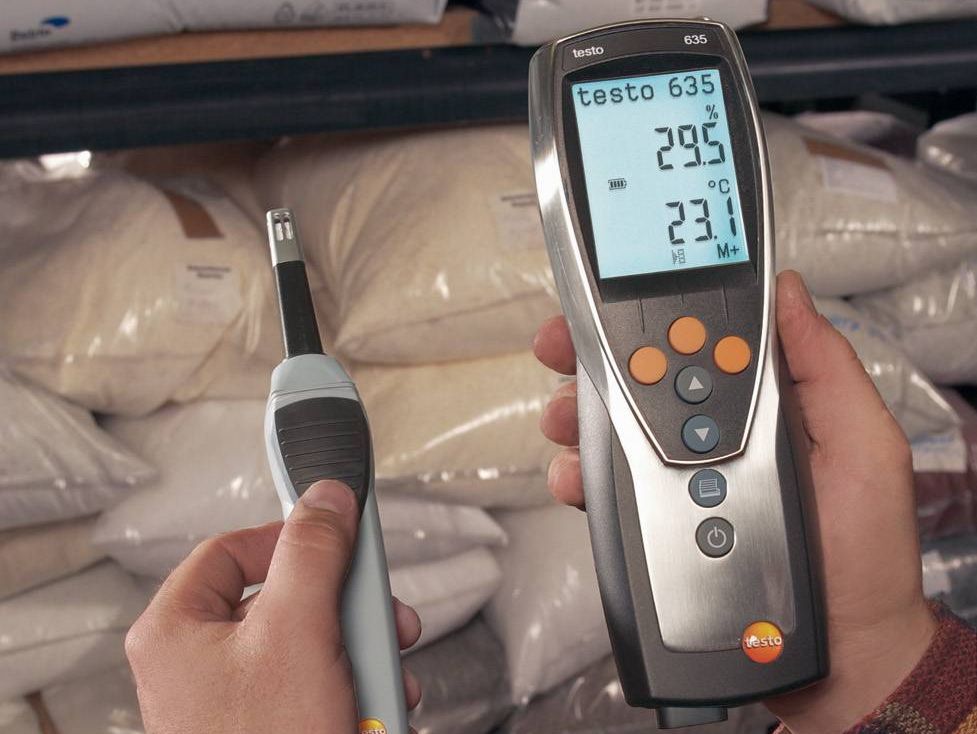

Humidity measuring instrument – testo 635-1

Description

The testo 635-1 for temperature and humidity measurement is ideally equipped for checking the air humidity, temperature and dew point in living areas, in production, storage and server areas and in museums and cold stores. It also aids the measurements of the ambient absolute pressure and dew point in compressed air can be quickly and efficiently. Attachable optional probes are available for recording the following values:
• Air humidity
• Material moisture
• Pressure dew point in compressed air
• Air temperature
• Surface temperature
• Core temperature
• U-value
• Absolute pressure
The testo 635-1 for temperature and humidity measurement has two probe inputs for plug-in probes with cables. In addition, upto three further temperature or humidity probes can be displayed with the testo 635-1 via radio-controlled data transmission i.e. wireless. Robust, practical and easy to handle In addition to readings, the testo 635-1 temperature and humidity measurement instrument also displays min., max. and mean values. While the pressure dew point probe measures the pressure dew point in compressed air, the humidity probe helps in measuring the dew point and water content of indoor air along with the psychrometric temperature, in addition to air humidity and air temperature.
The measuring instrument also calculates the dew point distance between indoor air and wall surface. The “Applications” tab in testo 635-1, indicates whether a mould in the home has been caused by incorrect use of ventilation or by moisture ingress. The user-friendly menu guidance, illumination function for reading legibility even in poor visibility and impact resistance due to its solid housing makes testo 635-1 very reliable and easy to use. Documentation of measurement data with testo 635-1 temperature and humidity measuring instrument The optional testo fast printer enables you to print out measurement data such as air humidity or temperature easily at any time. The practical cyclical printing function on the testo 635-1 not only enables the printout of individual readings, but also of whole series of measurements on the testo fast printer at freely adjustable intervals (for example once a minute).

USPs
  • Measures air humidity, temperature, absolute pressure and dew point in compressed air
  • Optional attachable probes
  • Measures air humidity, temperature, absolute pressure and dew point in compressed air
  • Cyclical printing of readings at freely adjustable intervals
Delivery Scope

testo 635-1 temperature and humidity measuring instrument, including calibration protocol and batteries. CAUTION: The instrument can only be commissioned with a probe. These are available separately.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature – NTC
Measuring range -40 to +150 °C
Accuracy ±0.2 °C (-25 to +74.9 °C), ±0.4 °C (-40 to -25.1 °C), ±0.4 °C (+75 to +99.9 °C), ±0.5 % of mv (Remaining Range)
Resolution 0.1 °C

Temperature – TC Type K (NiCr-Ni)
Measuring range -200 to +1370 °C
Accuracy ±0.3 °C (-60 to +60 °C), ±(0.2 °C + 0.3 % of mv) (Remaining Range)
Resolution 0.1 °C

Humidity – Capacitive
Measuring range 0 to +100 %RH
Accuracy
See probe data
Resolution 0.1 %RH

Absolute Pressure
Measuring range 0 to 2000 hPa
Accuracy
See probe data
Resolution 0.1 hPa

General technical data Dimensions 220 x 74 x 46 mm
Operating temperature -20 to +50 °C
Product-/housing material ABS / TPE / Metal
Battery type Alkali manganese, mignon, type AA
Battery life 200 h
Storage temperature -30 to +70 °C
Weight 428 g”
