Non-contact voltage tester – testo 745


The testo 745 non-contact voltage tester means you can quickly and easily determine voltage or de-energization. In contrast to most other models on the market, it has a filter for high-frequency interference signals which enables reliable voltage indication. If voltage is determined, the instrument gives a warning via a clear visual and acoustic signal. The sensitivity of the instrument can be set in two stages: stage 1 for phase detection, stage 2 for voltage indication. The integrated torch also enables you to work safely in dark surroundings. In addition, the testo 745 voltage tester is both waterproof and dustproof according to IP 67.

  • Voltage range up to 1,000 V
  • Waterproof and dustproof according to IP 67
  • Voltage range up to 1,000 V
  • Visual and acoustic signal
Delivery Scope

testo 745 non-contact voltage tester, including batteries, calibration protocol and instruction manual.


Download DataSheet Instruction Manual

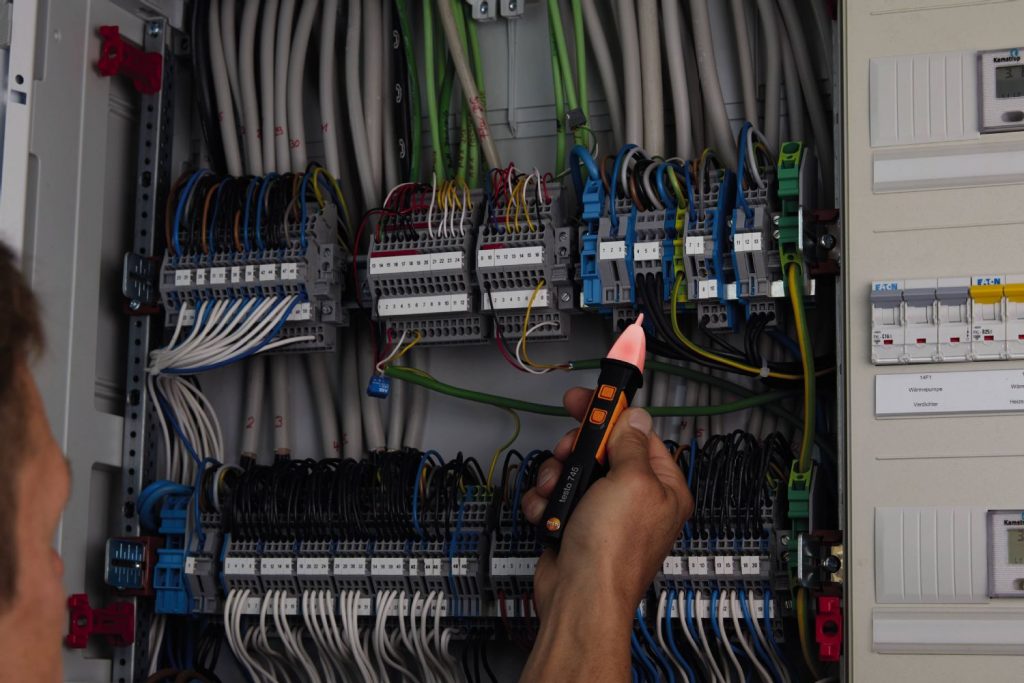

Application Image

Technical Details

DC voltage Measuring range 12 to 1000 V
AC voltage Measuring range 12 to 1000 V
General technical data Operating humidity 0 to 80 %RH
Weight 63 g
Dimensions 155 x 25 x 23 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP67
Standards EN 61326-1; EN 61010-1
Alarm function via LED; audible
Battery type 2 AAA micro batteries
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
Instrument Measurement Functions Measuring point illumination yes
