Voltage tester – testo 750-1

Description

In contrast to the standard voltage testers on the market, the testo 750-1 voltage tester has an extremely practical all-round LED display which can easily be seen in every work position and from any location. In addition, large fibre-optic illuminators show the presence of voltage clearly and distinctly. The deep-seated anti-slip ring, the ergonomic shape of the handle and the robust housing provide greater comfort when working.
The robust design means the voltage tester is durable and reliable, even when used intensively. The testo 750-1 voltage tester enables voltage or de-energization on electrical circuits or systems to be determined reliably. The instrument meets the latest EN 61243-3:2010 voltage tester standard and has a safety specification according to CAT III. In addition, it is suitable for continuity testing and rotating magnetic field measurement.

USPs
  • Clear, patented all-round LED display
  • In accordance with DIN EN 61243-3:2010 and CAT III
  • Clear, patented all-round LED display
  • Robust housing with ergonomic handle and anti-slip ring
Delivery Scope

testo 750-1 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.

Downloads

Download DataSheet Instruction Manual

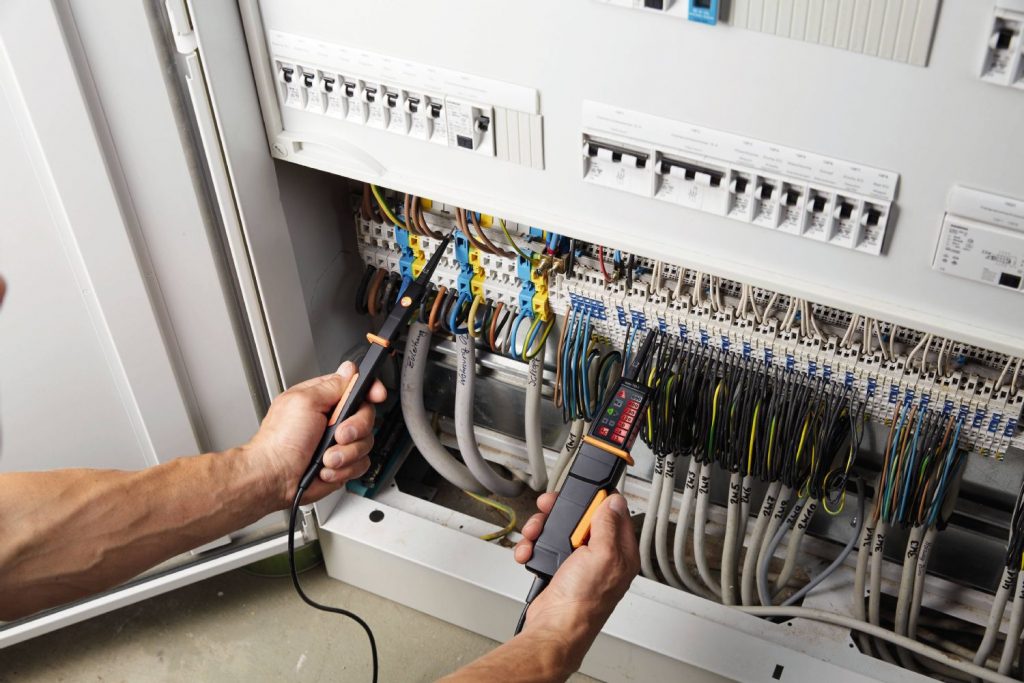

Application Image

Technical Details

DC voltage Measuring range 12 to 690 V
Accuracy according to DIN EN 61243-3:2010
AC voltage Measuring range 12 to 690 V
Accuracy according to DIN EN 61243-3:2010

General technical data
Operating humidity 0 to 95 %RH
Weight 230 g
Dimensions 270 x 65 x 35 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61243-3; EN 61326-1; EN 61010-1
Battery type 2 AAA micro batteries
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
Instrument Measurement Functions Continuity testing yes
Display ligthing yes
Rotating magnetic field testing yes
Single pole phase testing
Measuring point illumination
