Flue Gas Analyzer – testo 320

Description

“The testo 320 flue gas analyzer is a trusty and reliable companion for all those people who specialise in installing, inspecting and servicing heating systems. The high-quality, professional all-rounder is easy to use and allows you to carry out all measurements in and around heating systems with only one device. The testo 320’s special rugged design means that it is excellently equipped to stand up to the rough and tumble of daily use.
A set of easy-to-follow, self-explanatory, country-specific menus guide you safely through all the measurements. The readings are all presented graphically on a high-resolution, crisp color display for use in all lighting conditions. The user-friendly analyzer also has a memory for up to 500 readings.
Moreover the flue gas analyzer is TÜV-tested according to EN 50379, Parts 1-3 and 1 st BImSchV.

The testo 320 flue gas analyzer – facts and features
The testo 320 flue analyzer comes with one sensor for O 2 and additionally you can order a CO sensor (separate product). The flue gas analyzer then calculates the relevant flue gas values, i.e. CO 2 value, efficiency and flue gas loss.
There is also wide range of optional sensors for you to choose from. These include multiple-hole, edge crack and flexible flue gas sensors as well as an ultra-fine flue gas pressure sensor which allows you to perform draft and gas pressure measurements parallel to the other measurements.

Areas of application for the testo 320 flue gas analyzer
Six applications. One device:

  • flue gas measurements
  • flue draft measurements
  • gas flow and static gas pressure
  • gas leak detection
  • CO ambient air measurements
  • temperature difference measurements

Allows you to monitor and check heating environments, radiators and burners easily and reliably.”

USPs
  • High-resolution colour graphic display with quick and easy menu structure
  • Storage space for 500 measurement values
  • Measurement of flue gas, draught, pressure, ambient CO, differential temperature and gas leak detection
  • O2 and CO sensor and flue gas probe with temperature probe
  • TÜV-tested according to EN 50379, Parts 1-3″
Delivery Scope

testo 320 flue gas analyzer, O2 sensor

Downloads

Download DataSheetInstruction Manual

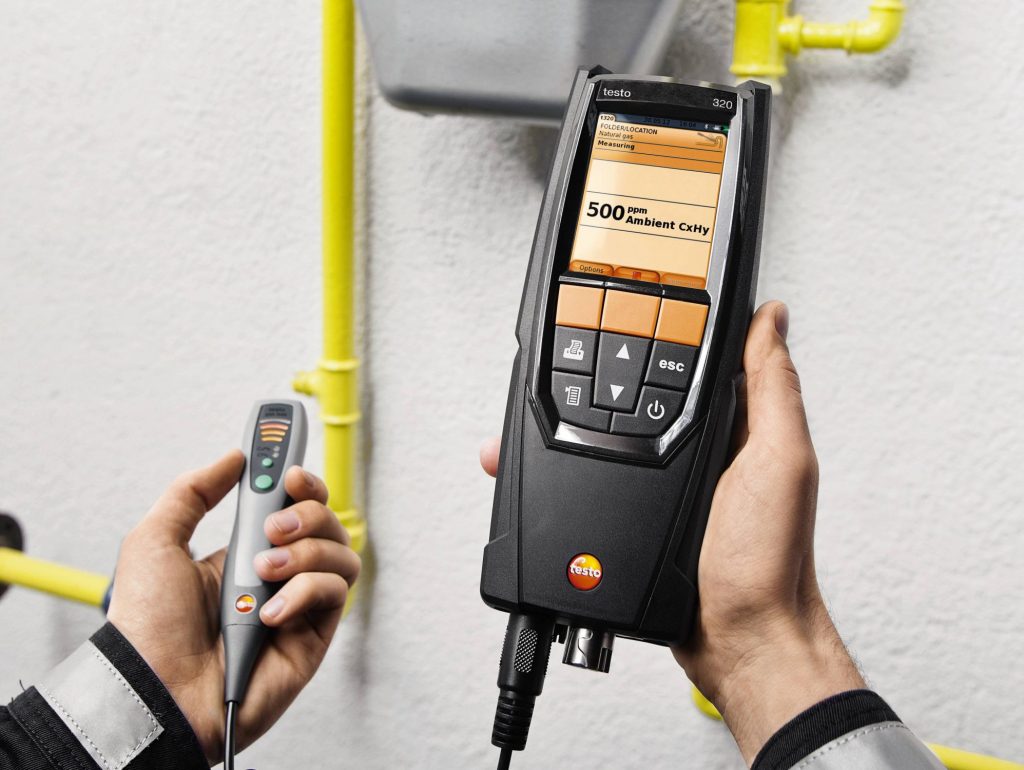

Application Image

Technical Details

Temperature
Measuring range -40 to +1200 °C
Accuracy ±0.5 °C (0 to +100.0 °C)
±0.5 % of mv (Remaining Range)
Resolution 0.1 °C (-40 to +999.9 °C)
1 °C (> +1000 °C)

Pressure measurement
Measuring range 0 to +300 hPa
Accuracy ±0.5 hPa (0.0 to 50.0 hPa)
±1 % of mv (50.1 to 100.0 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.1 hPa with fine draught option 0.01 hPa

General technical data
Dimensions 240 x 85 x 65 mm
Operating temperature -5 to +45 °C
Display size 240 x 320 pixels
Display function Colour graphic display
Power supply Battery: 3.7 V / 2,400 mAh; Mains unit: 6 V / 1.2 A
Maximum memory 500 Measurement values
Storage temperature -20 to +50 °C
Weight 573 g
