Description

The testo 635-1 for temperature and humidity measurement is ideally equipped for checking the air humidity, temperature and dew point in living areas, in production, storage and server areas and in museums and cold stores. It also aids the measurements of the ambient absolute pressure and dew point in compressed air can be quickly and efficiently. Attachable optional probes are available for recording the following values:
• Air humidity
• Material moisture
• Pressure dew point in compressed air
• Air temperature
• Surface temperature
• Core temperature
• U-value
• Absolute pressure
The testo 635-1 for temperature and humidity measurement has two probe inputs for plug-in probes with cables. In addition, upto three further temperature or humidity probes can be displayed with the testo 635-1 via radio-controlled data transmission i.e. wireless. Robust, practical and easy to handle In addition to readings, the testo 635-1 temperature and humidity measurement instrument also displays min., max. and mean values. While the pressure dew point probe measures the pressure dew point in compressed air, the humidity probe helps in measuring the dew point and water content of indoor air along with the psychrometric temperature, in addition to air humidity and air temperature.
The measuring instrument also calculates the dew point distance between indoor air and wall surface. The “Applications” tab in testo 635-1, indicates whether a mould in the home has been caused by incorrect use of ventilation or by moisture ingress. The user-friendly menu guidance, illumination function for reading legibility even in poor visibility and impact resistance due to its solid housing makes testo 635-1 very reliable and easy to use. Documentation of measurement data with testo 635-1 temperature and humidity measuring instrument The optional testo fast printer enables you to print out measurement data such as air humidity or temperature easily at any time. The practical cyclical printing function on the testo 635-1 not only enables the printout of individual readings, but also of whole series of measurements on the testo fast printer at freely adjustable intervals (for example once a minute).

USPs

• Measures air humidity, temperature, absolute pressure and dew point in compressed air
• Optional attachable probes
• Measures air humidity, temperature, absolute pressure and dew point in compressed air
• Cyclical printing of readings at freely adjustable intervals

Delivery Scope

testo 635-1 temperature and humidity measuring instrument, including calibration protocol and batteries. CAUTION: The instrument can only be commissioned with a probe. These are available separately.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature – NTC
Measuring range -40 to +150 °C
Accuracy ±0.2 °C (-25 to +74.9 °C), ±0.4 °C (-40 to -25.1 °C), ±0.4 °C (+75 to +99.9 °C), ±0.5 % of mv (Remaining Range)
Resolution 0.1 °C

Temperature – TC Type K (NiCr-Ni)
Measuring range -200 to +1370 °C
Accuracy ±0.3 °C (-60 to +60 °C), ±(0.2 °C + 0.3 % of mv) (Remaining Range)
Resolution 0.1 °C

Humidity – Capacitive
Measuring range 0 to +100 %RH
Accuracy
See probe data
Resolution 0.1 %RH

Absolute Pressure
Measuring range 0 to 2000 hPa
Accuracy
See probe data
Resolution 0.1 hPa

General technical data Dimensions 220 x 74 x 46 mm
Operating temperature -20 to +50 °C
Product-/housing material ABS / TPE / Metal
Battery type Alkali manganese, mignon, type AA
Battery life 200 h
Storage temperature -30 to +70 °C
Weight 428 g”

Description

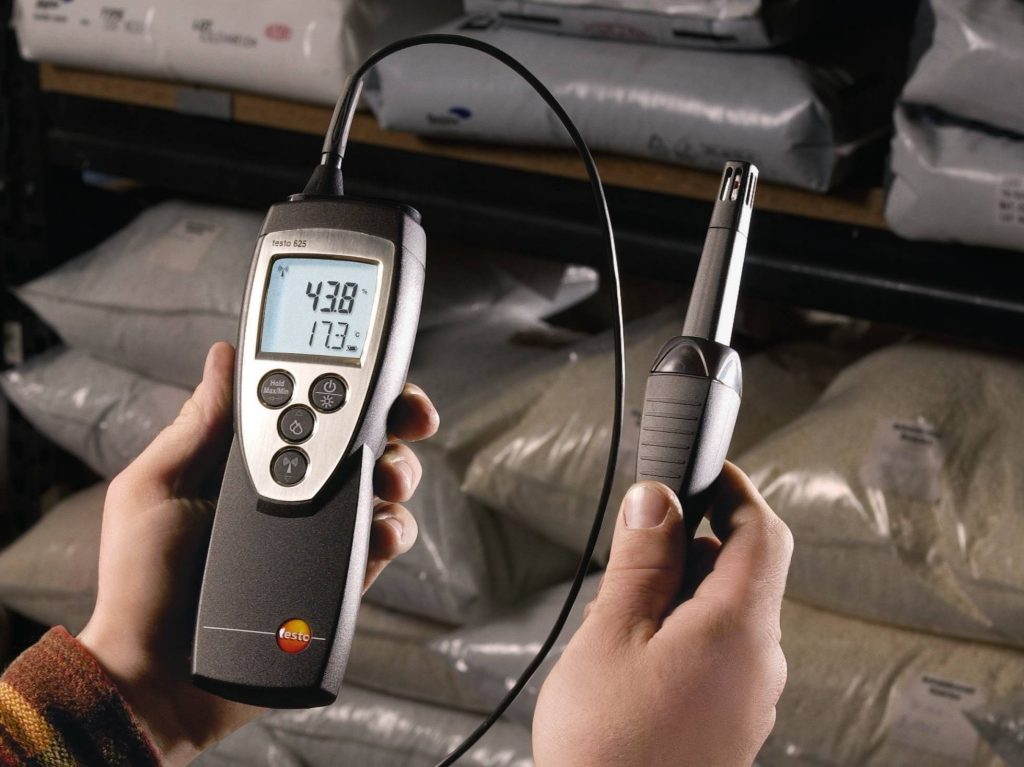

The testo 625 compact thermohygrometer has a connectable humidity sensor which measures the air temperature and relative humidity. In addition, it also calculates the dew point and wet bulb temperature.The meter is equipped with a large, easy-to-read, backlit display, a hold function which allows you to freeze the last reading and min and max readings that can be displayed at the touch of a key.
In addition, the testo 625 has a battery-friendly power off mode and a long life moisture sensor which ensures best possible results for years to come. Wide range of accessories for even more features The testo 625 thermohygrometer is equipped with all the basic functions. You may, however, also individualize your thermohygrometer with one of the following accessories:
• Hand grip with sensor guide: simply remove the humidity sensor and connect the hand grip with sensor guide (optional) to get to hard-to-reach or otherwise inaccessible places
• Wireless hand grip: connect the humidity sensor to the wireless hand grip (optional) and equip your thermohygrometer with the wireless module (optional) to carry out wireless measurements. The measurements can be transmitted wireless from the sensor to the meter over a distance of up to 20 meters (in the open).
• Protection against dirt and shock: a carry case (optional) ensures that your meter and the sensors are safely stored away when not in use. The durable TopSafe protective case protects your meter effectively against dirt ingress and impact.

USPs

• Measures air temperature and relative humidity
• Calculates dew point and wet bulb temperature
• Measures air temperature and relative humidity
• Integrated long life moisture meter for long lasting quality

Delivery Scope

testo 625 thermohygrometer, connectable humidity sensor head, calibration protocol, batteries.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature – NTC
Measuring range -10 to +60 °C
Accuracy ±0.5 °C
Resolution 0.1 °C

Temperature – TC Type K (NiCr-Ni)
Measuring range -200 to +1370 °C
Accuracy See probe data
Resolution 0.1 °C Radio probe

Humidity – Capacitive
Measuring range 0 to 100 %RH
Accuracy ±2.5 %RH (5 to 95 %RH)
Resolution 0.1 %RH

General technical data
Dimensions 182 x 64 x 40 mm
Operating temperature -20 to +50 °C
Housing ABS
Battery type 9V block battery, 6F22
Battery life 70 h (without radio operation)
Storage temperature -40 to +70 °C
Weight 195 g”

Description

“testo 616, the compact sized instrument for moisture measurement aids in precise and non-destructive measurement of moisture content of wood and building materials and of monitoring the drying process after water damage. Inspect the moisture content as a weight percentage compared to the dry weight by simply selecting the characteristic curve and placing the meter’s measuring claw against the surface of the material. You can also save the reading to your meter by just pressing the relevant key.

Although the measuring claw only comes into contact with the surface, wall or flooring that is being measured, it is able to determine the moisture content of the wood or other material down to a depth of 5 cm.

Ideal areas of use for the testo 616 moisture meter

The testo 616 moisture meter is a professional measuring device that can be used in areas as diverse as water damage restoration or carpentry or joinery.

– Moisture damage detection: the non-destructive method for finding moisture in walls and floors

– Monitoring drying processes: from carrying out moisture inspections to meeting building schedules to controlled drying after water damage – the non-destructive method for determining the moisture content in wood and building materials

– Moisture in wood: for checking the moisture content of wood that has been stored prior to processing

testo 616 moisture meter with 10 characteristic curves

– Soft wood
– Hard wood
– Pressboard
– Anhydrite screed
– Cementscreed
– Limesandbrick
– Gas concrete
– Concrete
– High insulationbricks
– Brickwork”

USPs

• Measurement depth up of 5 cm
• 10 characteristic curves for different types of building material and wood
• Measurement depth up of 5 cm
• Ergonomic design

Delivery Scope

testo 616 moisture meter for wood and building materials, calibration protocol, batteries.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Humidity – Capacitive
Measuring range
Resolution 0.1

General technical data
Dimensions 70 x 58 x 234 mm
Operating temperature +5 to +40 °C
Housing ABS / TPE / Metal
Protection class IP30
Battery type 9V block battery, 6F22
Battery life 60 h
Display update 0.5 s
Measuring rate 0.5 s
Unit Water content in percent by weight based on dry mass (%)
Measurement depth up to 5 cm
Storage temperature -20 to +70 °C
Weight 260 g

Description

“The testo 610 thermo-hygrometer enables fast and precise measurement of temperature and humidity in indoor areas, for example in offices, warehouses, production facilities or server rooms. Furthermore, the user-friendly measuring instrument can calculate both dew point and wet bulb temperature for you. Both values serves as important factors in terms of assessing the indoor climate as they enable you to conclude the relationship between temperature and humidity.

Reliable technology, ease of use: testo 610 thermo-hygrometer
With its built-in NTC temperature sensor, the testo 610 thermo-hygrometer offers great accuracy when it comes to temperature measurement. The thermo-hygrometer measures humidity using its capacitive humidity sensor which is characterized by its long-term stability. The two sensors make the testo 610 a reliable and durable thermo-hygrometer.

The thermo-hygrometer is easy to use: the current temperature and humidity values are easily legible on the illuminated display. In addition, you can display the calculated dew point and wet bulb temperature, as well as min./max. values. With its clip-on protective cap, wrist strap and belt pouch, the handy thermo-hygrometer can be safely stored and easily taken along to any measuring location.”

USPs

• Calculation of dew point and wet bulb temperature
• Illuminated display
• Calculation of dew point and wet bulb temperature
• NTC temperature sensor provides great accuracy

Delivery Scope

testo 610 thermo-hygrometer, including protective cap, calibration protocol, belt pouch and batteries.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature – NTC
Measuring range -10 to +50 °C
Accuracy ±0.5 °C
Resolution 0.1 °C

Humidity – Capacitive
Measuring range 0 to 100 %RH
Accuracy ±2.5 %RH (5 to 95 %RH)
Resolution 0.1 %RH

General technical data
Dimensions 119 x 46 x 25 mm (incl. protective cap)
Operating temperature -10 to +50 °C
Measuring rate 1 s
Protection class IP20
Battery type 2 batteries type micro AAA 1.5 V (LR03)
Battery life 200 h (average, without display illumination)
Storage temperature -40 to +70 °C
Weight 90 g (batteries and protective cap included)

Description

“Garden centers, offices, storerooms, laboratories, living quarters: the testo 608-H2 thermo hygrometer’s compact, unobtrusive design allows it to provide constant, up-to-the-minute readings of the indoor temperature and humidity without worrying how to place it, thanks to its wall and table mount for providing greater control and more flexibility.
The testo 608-H2: the practical thermo hygrometer from Testo
The testo 608-H2 thermo hygrometer is the premium choice for all those who do not wish to document and archive measuring data, but who wish to be able to measure and see the temperature and humidity and calculate and display the dewpoint whenever it is needed. The meter comes with a large, easy-to-read display that also allows you to see the readings from a distance.

In addition, the testo 608-H2 can display both minimum and maximum values and has an LED visual alarm that is activated when a threshold has been exceeded. Both the upper and the lower threshold can be individually configured.

The high-precision, long-term stable humidity sensor ensures that your easy-to-use, easy-to-clean measuring device provides you with reliable readings for years to come.

The testo 608-H2 thermo hygrometer has a battery life of approximately one year and a battery status indicator that shows you when the battery is running low.”

USPs

• Measures and displays temperature and humidity
• Calculates and displays the dewpoint
• Measures and displays temperature and humidity
• Long-lasting quality: long-time stable humidity sensor guarantees years of measuring

Delivery Scope

testo 608-H2 thermo hygrometer, calibration protocol, batteries.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature – NTC
Measuring range -10 to +70 °C, -40 to +70 °Ctd
Accuracy ±0.5 °C (at +25 °C)
Resolution 0.1 °C

Humidity – Capacitive
Measuring range 2 to 98 %RH
Accuracy ±2 %RH (2 to 98 %RH)
Resolution 0.1 %RH

General technical data
Dimensions 111 x 90 x 40 mm
Operating temperature -10 to +70 °C
Measuring rate 18 s
Housing ABS
Battery type 9V block battery, 6F22
Battery life approx. 1 year
Display type LCD
Display size 2 lines
Storage temperature -40 to +70 °C
Weight 168 g

Description

The testo 606-2 moister meter equips you for moisture measurement in different types of wood and building materials. Apart from measuring moisture in the same way as the testo 606-1 moisture meter, the testo 606-2 also measures the relative humidity and air temperature and calculate the dew point and wet bulb temperature. This means that you can now also measure the relative humidity in the surrounding storage area in addition to the moisture content of the wood you have stored. Armed with such valuable information, you can now easily determine whether the storage conditions are ideal or need to be adjusted.
Characteristic curves for precise moisture measurements in wood and building materials The moisture meter testo 606-2 measures the moisture content of wood and building materials via the two sensing electrodes which are pushed firmly into the material. The characteristic curves of the different materials allow the moisture content to be displayed directly as a weight percentage based on the dry mass (dry weight). The following characteristic curves are stored in the testo 606-2 moisture meter: – For precise moisture measurements in beech, spruce, larch, oak, pine, maple – For detecting moisture and wet places in building materials like cement screed, concrete, plaster, anhydrite screed, cement mortar, lime mortar and bricks.
The testo 606-2 moisture meter – compact, practical, professional, easy to use A variety of practical functions and features including a hold function which freezes the last reading; a backlit display for use in all lighting conditions; a slip-on protective cap, a belt holder which ensures safe storage and a hand strap that helps prevent your meter from being accidentally dropped, makes moisture meter testo 606-2 an efficient instrument for carrying out professional and reliable measurements.

USPs

• Precise moisture measurements in wood and building materials
• Ideal for carrying out relative humidity and air temperature measurements to check storage and drying
• Precise moisture measurements in wood and building materials
• Easy to use; backlit display for use in all lighting conditionsEasy to use; backlit display for use in all lighting conditions

Delivery Scope

testo 606-2 moisture meter, protective cap, belt holder, calibration protocol, batteries.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature – NTC
Measuring range -10 to +50 °C
Accuracy ±0.5 °C
Resolution 0.1 °C

Humidity – Capacitive
Measuring range 0 to 100 %RH
Accuracy ±2.5 %RH (5 to 95 %RH)
Resolution 0.1 %RH

Wood / Building material moisture
Measuring range 8.8 to 54.8 % by weight; beech, spruce, larch, birch, cherry, walnut; 7.0 to 47.9 % by weight; oak, pine, maple, ash-tree, douglas fir, meranti; 0.9 to 22.1 % by weight; cement screed, concrete; 0.0 to 11.0 % by weight; anhydrite screed; 0.7 to 8.6 % by weight; cement mortar; 0.6 to 9.9 % by weight; lime mortar, plaster; 0.1 to 16.5 % by weight; bricks
Accuracy ±1 %
Resolution 0.1
Measuring rate 1 s

General technical data Dimensions 119 x 46 x 25 mm (incl. protective cap)
Operating temperature -10 to +50 °C
Protection class IP20
Battery type 2 AAA micro batteries
Battery life 130 h (average, without display illumination)
Storage temperature -40 to +70 °C
Weight 90 g (protective cap and batteries included)

Description

“If you are looking for a compact, user-friendly thermal hygrometer, the testo 605-H1 is the ideal choice. It measures relative humidity and air temperature and in addition, also calculates the dew point in the -20 to +50 °Ctd range. The built-in Testo humidity sensor ensures reliable measurement results with long-term stability.

The thermal hygrometer is suitable for check measurements in production, storage, office and server areas. The testo 605-H1 is particularly practical for measurements in ventilation ducts, thanks to the permanently mounted probe shaft (length: 125 mm). The bracket provided with the instrument enables you to position and fix the probe shaft in the desired location in the ventilation duct. This means you can carry out your measurements without holding the instrument constantly.

The design of the testo 605-H1 temperature and humidity measuring instrument has been well thought through, right down to the details: the display can be pivoted into different positions, enabling the measuring values to be read off easily. The rotating protective cap at the end of the probe shaft protects the sensor from mechanical stress when the instrument is not in use.”

”

USPs

• Measures relative humidity and air temperature
• Calculates the dew point
• Measures relative humidity and air temperature
• Measuring values easy to read off thanks to a pivoting display

Delivery Scope

testo 605-H1 thermal hygrometer with dew point calculation, including duct bracket, attachment clip and batteries.

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature – NTC
Measuring range 0 to +50 °C, -20 to +50 °Ctd
Accuracy ±0.5 °C
Resolution 0.1 °C

Humidity – Capacitive
Measuring range 5 to 95 %RH
Accuracy ±3 %RH
Resolution 0.1 %RH

General technical data
Operating temperature 0 to +50 °C
Battery type 3 AAA micro batteries
Battery life Approx. 1000 h
Storage temperature -20 to +70 °C
Weight 75 g (with batteries, without packaging)
